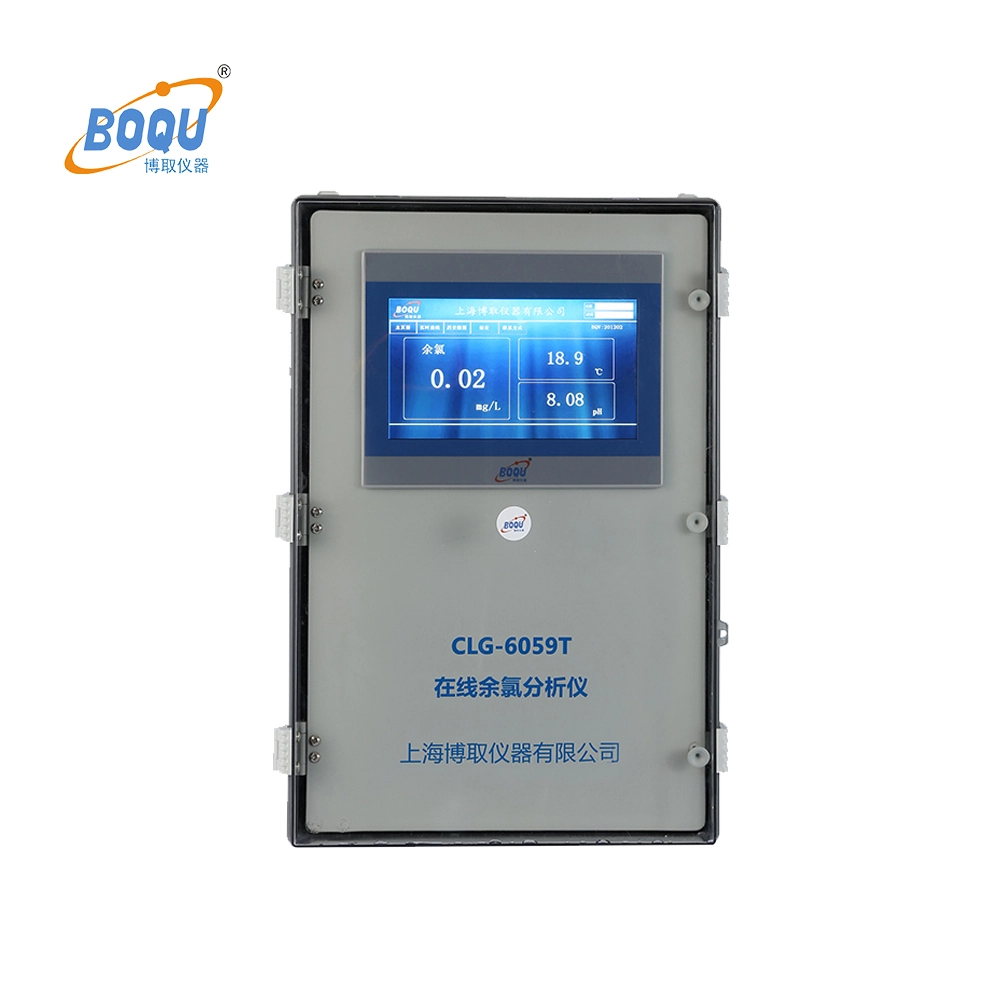

CLG-6059T Residual Chlorine Meter
1. With 10 inch Touch screen
2. With Human-computer interaction interface, easy to use
3. Measure Residual Chlorine ,pH,Temperature at same time.
4. With Digital (RS485)Residual Chlorine and pH Sensor.
5. Integrated design,Plug-and-use,no learn cost.
6. Local data logger function and USB for download
7. Standard RS485 Modbus Communication
8. Optional Wireless function for mobile App and website.
Accurate, Portable, Easy-to-Use Residual Chlorine sensor
The digital residual chlorine sensor is a new generation of intelligent water quality detection digital sensor independently developed by BOQU Instrument. Adopt advanced non-membrane constant voltage residual chlorine sensor, no need to change diaphragm and medicine, stable performance, simple maintenance. It has the characteristics of high sensitivity, fast response, accurate measurement, high stability, superior repeatability, easy maintenance, and multi-function. It can accurately measure the residual chlorine value in solution. It is widely used in self-controlled dosing of circulating water, chlorine control in swimming pools, and continuous monitoring and control of residual chlorine content in aqueous solutions in drinking water treatment plants, drinking water distribution networks, swimming pools, hospital wastewater, and water quality treatment projects.
Product Display
Accurate and Reliable Residual Chlorine Measurement
Accurate Residual Chlorine Measurement
Accurate chlorine measurement, especially in water treatment or monitoring, is typically based on electrochemical or colorimetric methods. Below is an explanation of both approaches, which are widely used for measuring chlorine levels.
Electrochemical (Amperometric) Method
The electrochemical method uses a sensor or electrode to measure chlorine concentration. This technique involves the oxidation or reduction of chlorine at an electrode surface, generating a measurable electrical current proportional to the chlorine concentration.
- Free chlorine (Cl₂) or hypochlorous acid (HOCl) in the water sample reacts at the surface of the electrode.
- Two electrodes (a working electrode and a reference electrode) are immersed in the sample. Chlorine is reduced at the working electrode, creating an electric current.
- The magnitude of this current is directly proportional to the concentration of chlorine in the solution.
Electrochemical sensors often have a membrane that selectively allows chlorine to pass through and reach the electrodes. This method is sensitive and provides continuous real-time monitoring, commonly used in industrial and municipal water treatment systems.
Advantages:
- Continuous, real-time measurement.
- Good sensitivity for low levels of chlorine.
- Reliable for both free and total chlorine measurements.
Application Scenario
Boqu Company has two factories in Shanghai with 17 years of production experience. We are the source factory, producing and selling by ourselves. We have a research and development center to develop products that meet market demand, a production line managed by 5S standards, and a professional quality inspection team.
Material Introduction
Residual Chlorine SENSOR is constructed using high-quality and durable materials to ensure long-lasting and reliable performance. The product features a sleek and sturdy design, with a sensor input connector and data storage capabilities for calibration and measurement data. With its durable construction and precision engineering, Conductivity SENSOR is an essential tool for continuous monitoring of ph levels in various industries, such as environmental protection, pharmaceutical, foodstuff, running water, and many more. Boqu Instrument Co., Ltd., a leading manufacturer, is dedicated to using advanced technologies to solve environmental problems, ensuring high-quality and reliable performance for its products.
