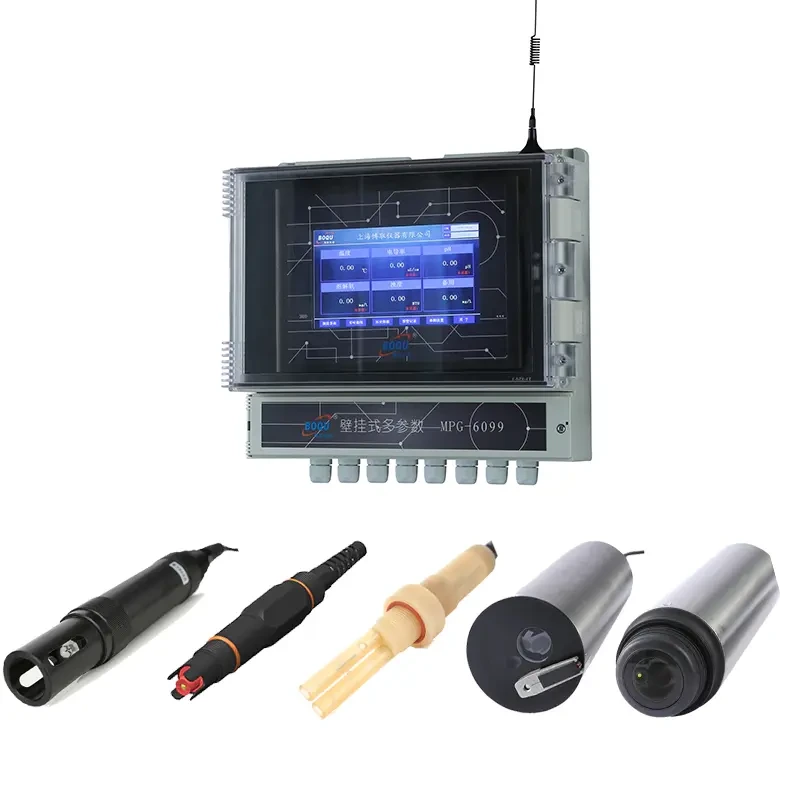

MPG-6099 Multiparameter Water Quality Meter
MPG-6099 Multi-parameters Water Quality Analyzer
Multi-parameter water quality on-line analysis system integration platform, It can directly integrate a variety of water quality online analysis parameters in a whole machine, in the touch screen panel display focused on and management; the system set on-line water quality analysis, remote data transmission, database and analysis Software, system calibration functions in one, the modernization of water quality data collection and analysis provides a great convenience.
Flexible configuration of the combination, the cabinet inside the sample and analysis of the part can be flexible matching (Note: the specific parameters to the actual ordering parameters prevail): pH, ORP, dissolved oxygen, conductivity, temperature, ammonia(NH4+), COD, Turbidity and other conventional parameters, the actual needs of customers should be combined or extended ; Water part of the use of the company's latest application research results - tandem flow analysis device, the water required little, real-time
1)Real-time water quality measurement.
2)All water quality sensor is RS485 Modbus
ensure precision to collect data.
3)Easy operation,all operation will will in one touch screen.
4)Datalogger function,all measured data will be recorded.
5)Download,MPG-6099 multi-parameters water quality meter is
|
6) Wireless function for operation,users only need insert local SIM card,
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Display mode
LCD: 7 inch touch screen
Power consumption
24VDC or 220VAC
PH/ORP Output 1
-2000mv~+2000mv
Note
Other parameters can be customized based on requirements.
Protection Grade
IP65
Working condition
Temperature:（0-50）℃；
Turbidity Range
0~3000NTU
Conductivity Range
0~2000ms/cm
Ammonia Nitrogen Range
0~1000mg/L NH3-N
Wireless
Optional
Data logger
Yes
Download
With USB interface
Input
RS485 Modbus
Current Output
RS485 Modbus
Dimension
320mmx270mmx121 mm
Power supply
AC 220V±10%
Measuring Range
0-14.00pH
Dissolved Oxygen
0~20mg/L
ORP
-2000mv~+2000mv
pH
0~14
Conductivity
0~2000ms/cm
